Corrugated Box Banding Machine Desktop Pp Strapping Type No Paper Edge Damage

CANGZHOU JCS PACKAGING MACHINERY CO., LTD

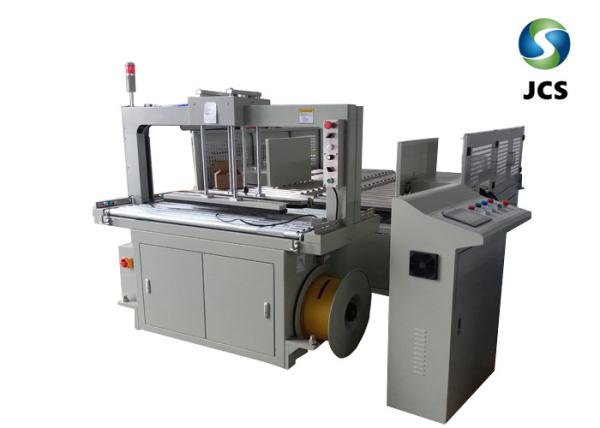

Corrugated Box Banding Machine Desktop Pp Strapping Type No Paper Edge Damage

Brand Name : JCS

Certification : CE Certification

Place of Origin : Dongguang County, Cangzhou City, Hebei Province, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 10 days

Packaging Details : Wrapped With Film

Voltage : 380V

Warranty : 1 year

Automatic Grade : Automatic

Drive Type : Eletric

Condition : New

Contact Now

Corrugated Box Strapping Machine Fully Automatic Desktop Plastic Banding Type

1. usage and characteristic
Automatic strapping machine is mainly used in automatic sticky box machine/output after automatic strapping automatic order box machine, the machine by turning, taken together, pressurized banding.Using PP strapping, strong, do not rebound, paper edge damage.The whole process automatically, without human intervention, can save a lot of artificial cost.Such as color, paper products factory packaging equipment for increasing the income of enterprises and reducing consumption.

2. main structure
The machine contains four parts: Receive board and turn part, clear up and patting part, delivery part, pressure strapping part.

3.each part characteristic and function
(1)receive board and turn direction part
1. Smoothly receive cardboard before prior conveying.
2. Double touch type steering, will be 90 degrees of corner cardboard.
(2)clear up and patting part
1, can be adjusted according to different specifications carton size.
2, arrange positioning automatically four direction taken together, and then delivery.
(3)delivery part
after finishing send carton smoothly, improve the work efficiency;
(4)pressure strapping part
1, pneumatic pressure will be more than one solid board.

2, PP belt automatically, the elastic can be adjusted, paper edge damage light.
3, automatic adaptation cardboard size.
4, photoelectric sensing detection strap position.
5, 1~2 Road, the use of knob switch
6, strapping automatically after delivery.
(5)work procedure


Receive paper and turn direction part --→pat and clear up packs --→delivery--→press and strap --→finish delivery


4 technique parameter

model: 1400

the main technical parameters:
Max.paperboard: 1300 x 1200
Min. paperboard : 300 x 400 working speed: 10packs / min
Overall dimensions: 4800 x 2100 x 1600 mm
Power supply : three phase four phase distribution (three-phase 380 v + zero)
The machine power: 3 kw
Weight: 2 T

5.the main features:
A, to adapt to the automatic sticky box carton strapping.
B, reduce human dependence, replacing workers operation.
C, compact work, don't need human intervention.
D, strapping good carton has sticky mouth is strong, strong, do not rebound, low box edge breakage, etc.

E, choose and employ persons, less speed, than the ordinary strapping machine is 2 ~ 4 provinces, than manual strapping province 10 to 20 people.
F, suitable for export packaging, green packaging, such as beverage containers, beer case, instant noodles, boxes, cases of high grade ceramic tile packaging carton

6.part list

electrical parts
Inverter : Schneider
Contactor :Schneider
PLC: SIEMENS / Panasonic
Photoelectric switch: OMRON /B+F
Motor:Taibang / WAN Xin
