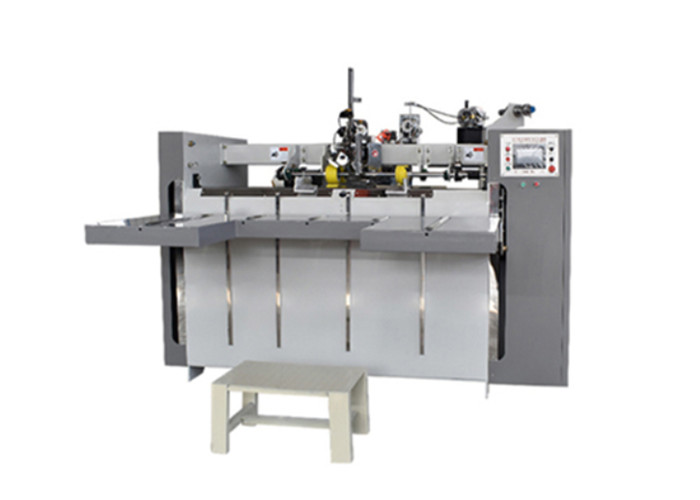

Various Size Corrugated Stitching Machine , Automatic Box Stitching Machine

Automatic Corrugated Box Binding Machine Corrugated Stitching Machine

Usage and Charateristics

1. The auto stitching machine has a double-servo driven part, machinery failure rate is reduced effectively.
2. The machine can be optionally equipped with a rear manual or electric baffle plate driven by a step motor With accurate positioning performance,the rear baffle plate allows the carton stapler to stitch cartons of different sizes, and the machine supports carton size change in a minute.
3. When operate the machine, you can adjust the paper feeding rubber wheel clearance manually or electrically as you like.
4. An intelligent touch screen is mounted to auto stitching machine, which means that you can change the parameters including stitching space, nail quantity, nail type, rear baffle plate position in an easier way.
5. With the machine, you are free to nail with single nail, double-nail or three-nail mode according to your special demands.
6. The machine can also count the paper fed into it(0-999)automatically and when one bundle is completed, it will be sent out automatically for bundling machine and the minimum space between the first nail to the carton edge is 25m auto carton stitching.

Product advantage

1. Box without bottom and with cover can be stapled (to be specified when ordering). 3-5 minutes to shift the sizes, simple and quick.
2. The paper feeder feeding speed is controlled automatically by PLC, guaranteed not to occur nail carton out or nails bad phenomenon.
3. The machine adopts computer screen operation, and displays the fault description.
4. The machine finally automatic counting stacking quantitative output.
5. The machine can do singel, double nails, strengthening the nail, double and single head tail nail are completed at a time.
6. The machine can stitch three layer, five layer carton (seven layer need to be declared in advance in order).
7. The machine for bundling part is optional.
8. If deflection during normal operation, the machine will stop automatically.

Main Technical Parameter

carton box stitching machine

cardboard stitching machine
