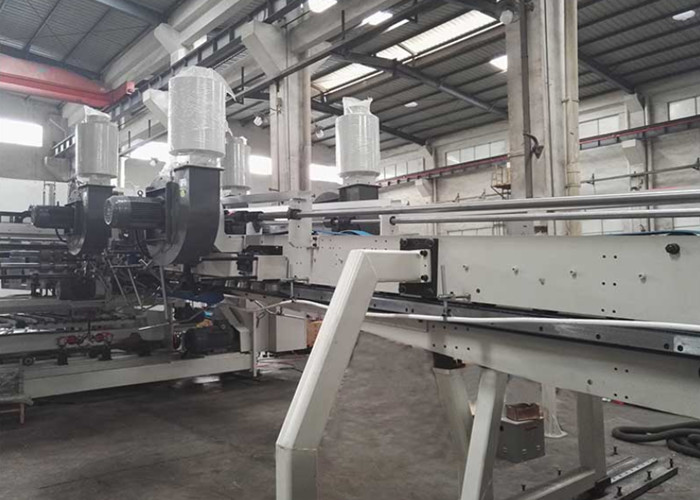

Automatic Corrugated Carton Box Printing Slotting Packing Linkage Line Machine
Features
1. This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
2. Computerized control,order setting in touch screen.
3. The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality.
4. The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system.
5. The correction device in the Countering Section can conquer the fish-tail,makes the carton even.
6. The quantity of bundle come out from the Counter Ejector can be set in touch screen.
7. All electronic and pneumatic components are with European standards.
Data
| Model | 900x2000 | 900x2400 | 1200x2000 | 1200x2400 |
| Printing Speed(m/min) | 200 | 200 | 200 | 200 |
| Max Machine Speed(pcs/min) | 350 | 300 | 250 | 250 |
| Max Feeding Size(mm) | 880x2000 | 880x2400 | 1180x2000 | 1180x2400 |
| Min. Feeding Size(mm) | 280x640 | 280x640 | 320x700 | 320x700 |
| Skip Feeding(mm) | 1100x2000 | 1100x2400 | 1500x2000 | 1500x2400 |
| Max. Printing Area(mm) | 800x2000 | 800x2400 | 1150x2000 | 1150x2400 |
| Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 |
| Min. Panel(mm) Slot Type L. | 240x80x240x80 | 240x80x240x80 | 260x90x260x90 | 260x90x260x90 |
| Max. Slotting Depth(mm) | 250 | 250 | 320 | 320 |
| Min. Folding Size(mm) | 280x760 | 280x760 | 320x800 | 320x800 |
| Max. Thickness of Sheet(mm) | 8 | 8 | 12 | 12 |
| Dimension(LxWxH) T F | T:18832×4750×2800 F:19552×4750×2800 | T:18832×5150×2800 F:19550×5150×2800 | T:20255×4870×2800 F:20975×4870×2800 | T:20255×5270×2800 F:20975×5270×2800 |
Details
Plate Type:Letterpress
Colors Unit:1~7 colors
Automatic Grade:Automatic
Certification:CE Certificate, ISO9001
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
